Definition Channel Data Command

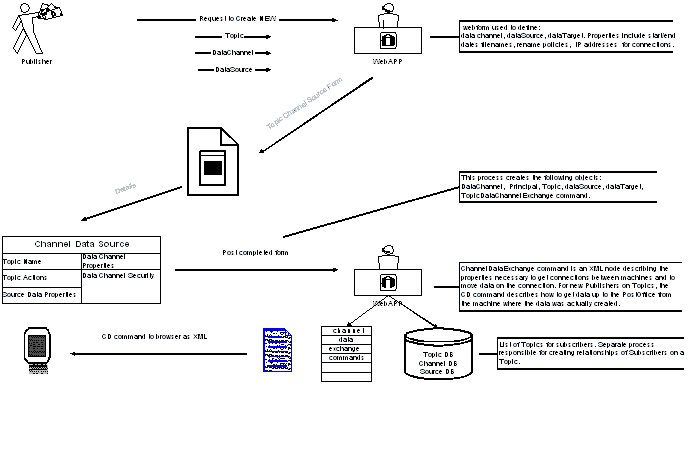

Think of what FTP does? It gets a data connection between 2 computers and processes "get" or "put" commands on the connection. Processing for each of these commands result in the movement of a file (push or pull ) across the data connection A list of properties used in a typical FTP session would be ( IP, userID, password, GET OR PUT, fileName, remoteFileName ). In addition to FTP, if you extend the protocol list to include SSH, SOAP, HTTP, GridFTP, there is not a big change in the list of properties needed to define a connection and to move data on the connection. If you were to wrap all these properties ( keys and values) in a chunk of XML it would be very similar to a ChannelData Command So, the definition for a Channel Data Command is an XML node describing every property needed to build data connections between machines and to move files on the connection. When new data is created, 2 sets of CD commands control the data distribution that runs the full pub/sub circuit. A single CD publish command moves data from the client machine where the data was created to the PostOffice. A set of CD subscribe Commands dispatch copies of data to subscribers from the PO - one command used for each subscriber to the Topic.

Business Semantic - Controls the movement of data

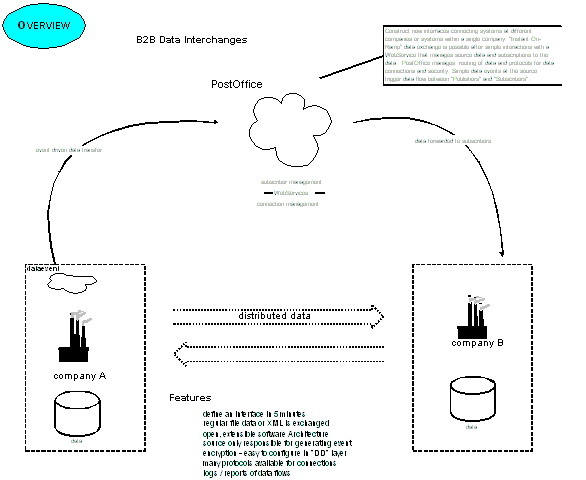

Alot of data is out there. With a simple List of destinations, using this software, you can easily control and re-direct data in your organization or amoung organizations. Whenever you create data, an automatic process gets the data to every other system that needs the data. Data is created and then linked to a dataset event. Used as a wrapper for files (dataSet) or XML (xmlNodeSet), the event's capabilities include directing a series of transport operations affecting the data's subsequent location on the network. Aware of the business semantic of the wrapped data - InvoiceDataSet for example - the event initiates all the infrastructure connections and file movement commands required to get the invoice dataSet sent to every other financial system where it will be needed. Two things are needed to accomplish this :

1. List of Destinations - where is the data needed
2. Transport Process - move the data to destination(s)

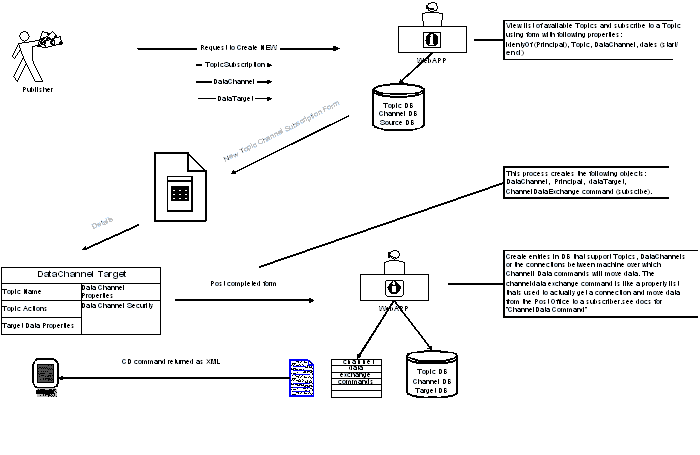

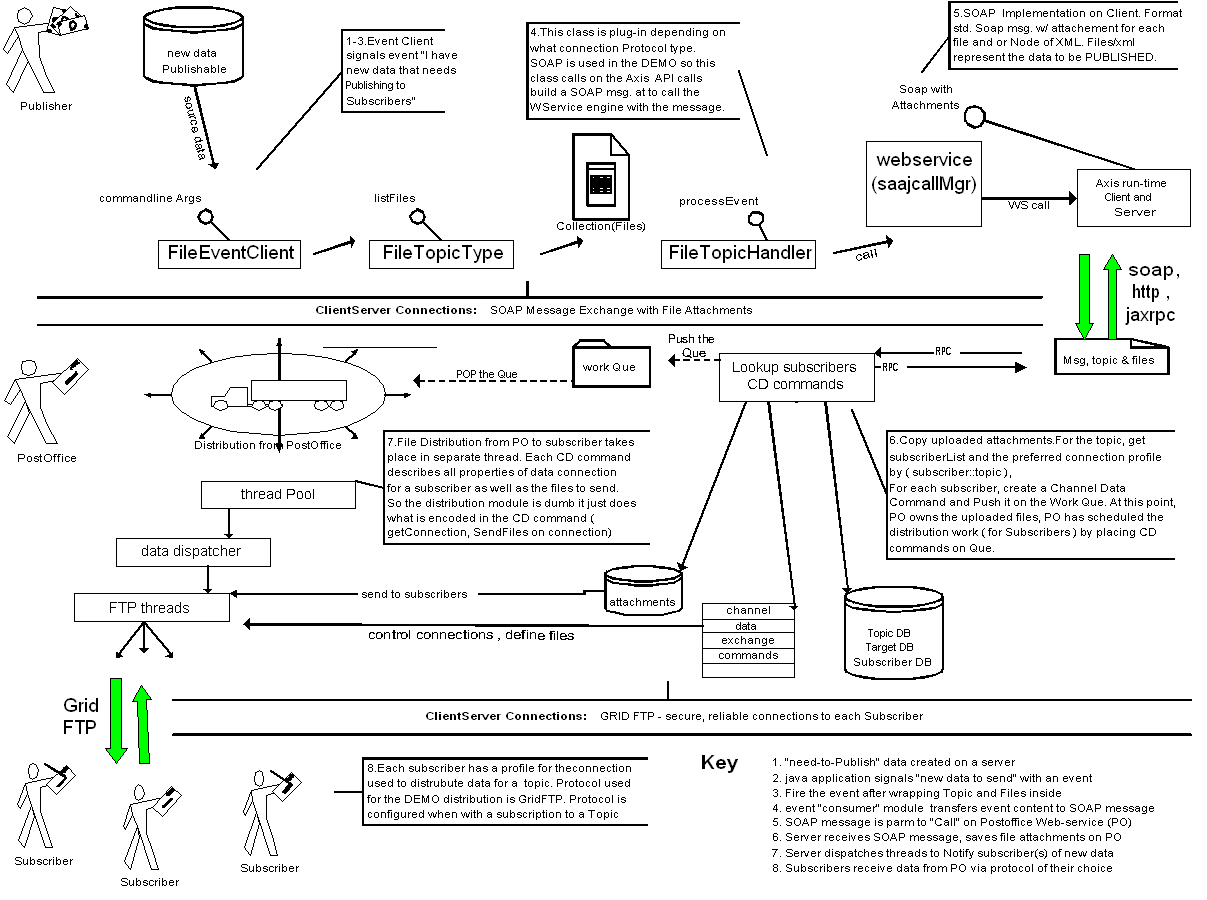

Channel Data Commands accomplish the 2nd item by controlling the movement of data from a source to a target. A data distribution center or PostOffice is the first stop for the new data, and then the PO forwards data to any subscribers that have expressed their interest in the event. Following standard messaging behavior, the concept of data distribution topic (Topic ) is the mechanism that binds interested designated in the properties of the event. Anywhere that you create data in your business, you can run a simple Java Client program ( an application) in order to issue the event. That simple client program All that is required of the Client software is this information for 2 simple questions : What is your Topic? Where is the data? The latter question has 2 child questions: either What is you FileName? OR What is your XML RootNodeName. movement commands are invoked in response to business data events or due to the arrival at a Servlet of posted requests a designed to process or to consume the commands. As long as the Topic is known, any process that writes data can publish the data by getting an event data wrapper and then firing the event. Clients that generate new data and that want to move that data up to the PO signal a " event.

Architecture - general topic includes commands
